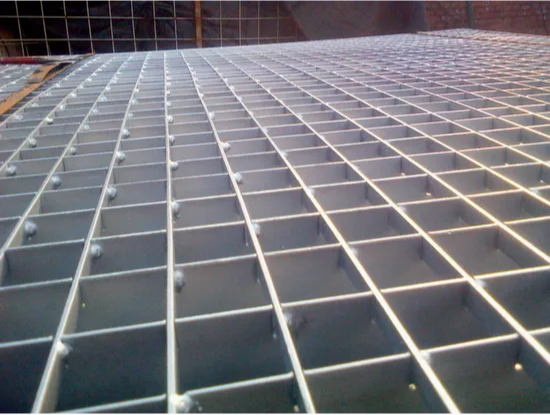

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate
Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Gambar besar :  Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Detail produk:
Tempat asal: Cina
Nama merek: GNEE
Sertifikasi: ISO9001,SGS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 meter persegi
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate

Deskripsi
Menyoroti:

welded steel grating plate

,

pressure locked serrated grating

,

metal serrated steel grating

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate
Press-locked steel grating is fully welded by flat bar (smooth flat bar, serrated flat bar, I shape flat bar). It also can be called pressure locked grating, made of low carbon steel or stainless steel. With the performance of high bearing capacity, non-slip, anti-corrosion and easy to install and remove, pressure locked grating is widely used for ceilings, platforms, floors, fence and all kinds of cover in the factories, civil and commercial buildings.
Two press-locked steel grating with different mesh sizes which people often use: 33 mm × 33 mm, 33 mm × 11 mm.
  • Light weight, high bearing capability and high strength
  • Non-slip, anti-corrosion
  • Not easy to deform
  • Beautiful appearance
  • Easy to install and remove
  • Extended the lifespan

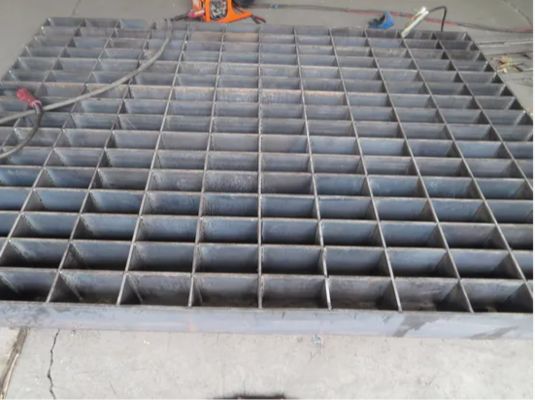

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 0
Applications of Press-Locked Steel Grating
Press-locked steel grating is widely used for the floor, ceiling, platform, fence, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such places:
  • Large-scale shopping malls
  • Construction industry
  • Factories, subway stations
  • Offshore drilling platforms
  • Ships
  • Terminals
  • Other industrial and civil construction

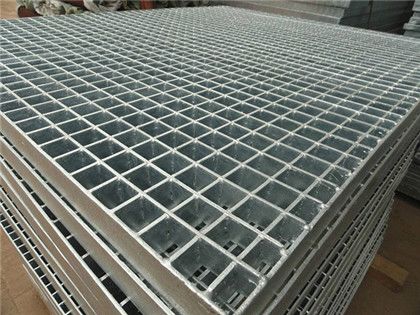

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 1
Technical Specifications
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing bar pitch Cross bar pitch Load steel size (Width × Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

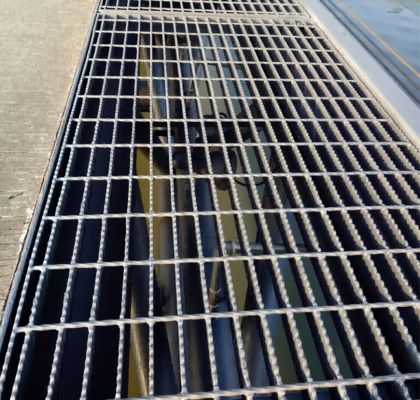

Welded Swaged Pressure Locked Metal Serrated Steel Grating Plate 2

Label:

press lock grating,

welded bar grating,

pressure locked grating
