HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar
HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

Gambar besar :  HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

Detail produk:
Tempat asal: Cina
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 meter persegi
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar

Deskripsi
Menyoroti:

SS serrated steel grating

,

25x5 mm bearing bar grating

,

HDG steel grating with warranty

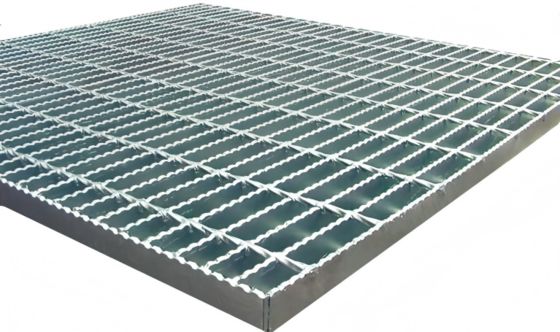

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar
Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is the go-to choice for applications demanding high load-bearing prowess or aesthetic appeal. Produced from a specified size of serrated steel, this grating undergoes a series of meticulous processes-slotting, inserting, welding, and finishing-culminating in a product capable of handling substantial loads. It stands as a trusted solution for heavy-duty industrial platforms, offering a significant safety margin. Surface treatments are versatile, including galvanizing, painting, or dipping, tailored to your needs.

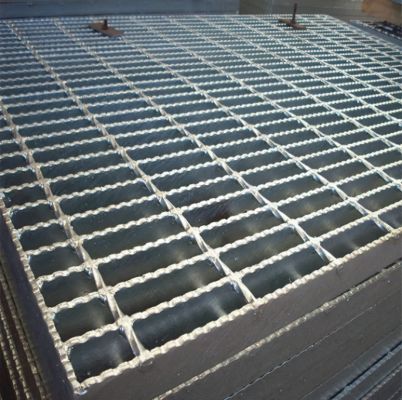

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 0
Specification
Product Name Customized Anti-slip Serrated Steel Grating
Material Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc.
Surface treatment Hot dipped galvanized, polished or untreated
Grate size as customer's request
Bearing bar width x thickness 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
Bearing bar pitch 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm.
US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4",
11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch 38,50,76,100,101.6mm or custom
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50

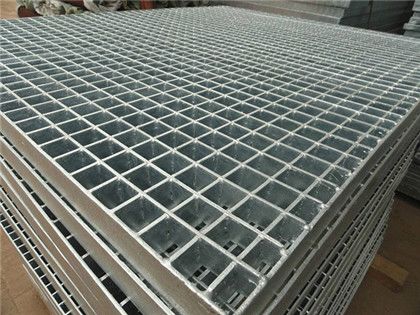

HDG Grating Factory Ss Steel Serrated Grating China 25X4.5 25X5 mm Bearing Bar 1

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
