Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Gambar besar :  Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Detail produk:
Tempat asal: Cina
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 meter persegi
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Deskripsi
Menyoroti:

rust-proof galvanized steel grating

,

serrated steel grating platform

,

galvanized steel grating with warranty

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Product Description

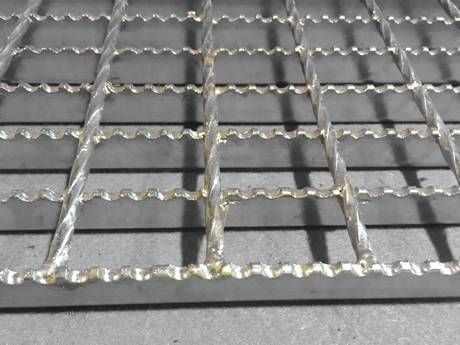

Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both directions as needed.

Serration Types
  • Small Serration: Most common type, used for industrial walkways, staircases, and heavy-duty ramps.
  • Large Serration: Easy to clean, primarily used in industrial kitchens, canteens, and other high-hygiene areas requiring non-slip properties.
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 0
Specifications
Item Description
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10,100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc.
US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',
1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',
1 1/2'x1/8' etc.
Bearing Bar Pitch 12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening)
Twisted Cross Bar Pitch 50, 60, 76, 100, 120mm etc.
US standard: 2' & 4' etc.
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 1 Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 2

Serrated steel grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. In addition to its high strength and light weight, this type of grating also has non-slip characteristics, no sharp edges and serrations are rolled on, to meet strict health and safety requirements. Hot rolled serrations help stop lacerations if someone falls on the grating.

Bearing Bar Specifications
No. Bearing Bar Pitch (mm) Standard Panel Width (Bearing Bar Thickness 5mm) Bearing Bar Number (PC) Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch.
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 3

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
