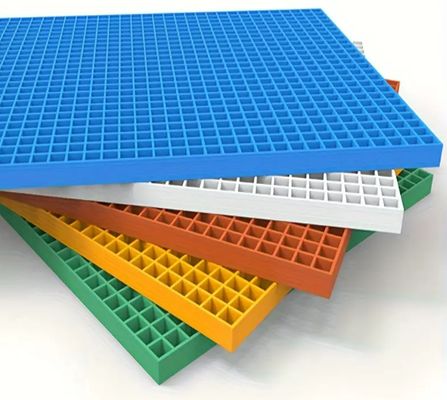

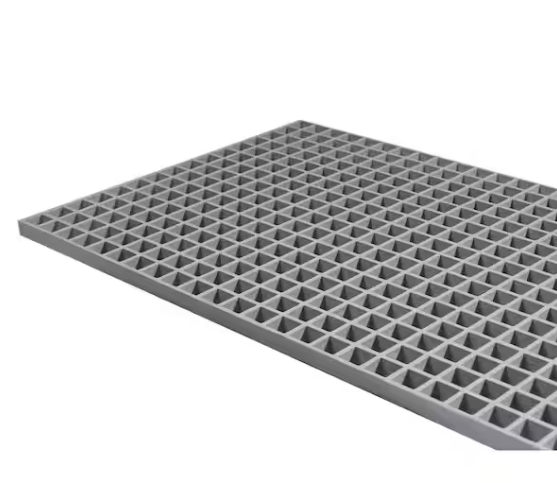

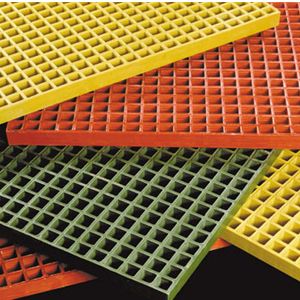

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring
Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Gambar besar :  Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

Deskripsi
Menyoroti:

fiberglass reinforced plastic grating

,

FRP grating walkway flooring

,

GRP gratings for industrial flooring

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring

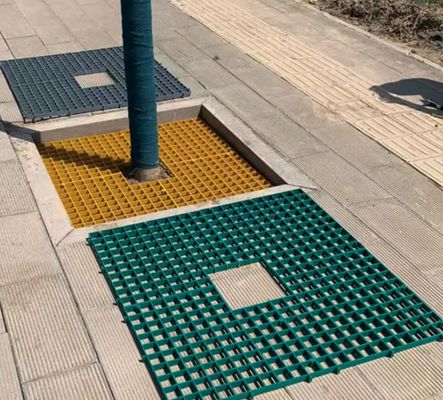

FRP/GRP Grating (Fiberglass Reinforced Plastic) is also known as glass-reinforced plastic grating or fiberglass grating. One of the main advantages FRP Grating has over steel is that FRP simply WILL NOT RUST. That's why you frequently see FRP used around saltwater for walkways, docks, and handrails.

Work with our fiberglass grating service to ensure your flooring, handrails, walls, and decks both indoors and out are fully protected against a wide range of uses and environments.

FRP Grating looks so much like steel, so you may have seen FRP at a marina and not even know it. The price for FRP Grating is also often lower than steel or aluminum prices required to provide the same protection because FRP can perform at a much lower weight requirement.

Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring 0
Technical Specifications
Mesh size (mm) Thickness (mm) Bar thickness (Top/Bottom mm) Panel size available (mm) Weight (kg/m2) Open Rate (%)
38*38 13 6.0/5.0 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 6 78%
38*38 14 6.0/5.0 1220*3660,1220*4000,1220*2440, 915*3050, 1268*4010 6.5 78%
38*38 20 6.0/5.0 1220*3660,1220*4000,915*3050 9.8 65%
38*38 25 6.3/4.8,6.5/5.0 1220*3660,1220*4000,915*3050 12,12.3 68%
38*38 30 6.5/5.0 1220*3660,1220*2440,915*3050 14.6 68%
38*38 38 7.0/5.0 1220*3660,1220*2440,915*3050 21.5 68%
38*38 50 8.0/6.0,11.0/9.0 1220*3660,1220*2440,915*3050 30,42 56%
38*38 60 10.5/9.0 1220*3660,1220*4000,915*3050 50.4 54%
38*38 70 11.5/9.0 1230*4010 58.8 49%
40*40 25 5.0/3.8,6.0/4.0, 7.0/5.0 1220*3660,1220*4025,1000*4040 9.5,11.5,12.3 67%
40*40 30 6.0/4.0,7.0/5.0 1220*3660,1220*4025,1000*4000 15,14.6 67%
40*40 38 6.0/4.0,7.0/5.0 1220*3660,1000*4000,1220*4025,1220*2440 20,19.2 67%
40*40 40 7.0/5.0 1220*3660,1000*4000,1220*4025,1220*2440 19.5 67%
43*43 25 5.0/3.8 1220*4000,1220*4054,1220*3660, 1003*4054 9
50*50 15 6.0/5.0 1220*3660,1220*2440,1220*4000 5.9 82%
50*50 25 7.0/6.0 1220*3660,1220*2440,915*3050 11.5 80%
50*50 40 6.8/5.0 1778*4531,1225*4531 18.2 78%
50*50 50 8.0/6.0 1220*3660,1220*2440,915*3050 23 78%
50*50 63 8.3/6.0 1220*3660,1220*2440,1220*4000, 915*3050 28.8 78%
52*52 50 5.0/5.0 1220*4000 21
79*79 23 6.5/5.0 405*3569 5.7 80%
83*83 25 7.0/5.0 1007*4007,1007*3007 5.8 84%
83*83 38 7.0/5.0 1007*4007,1007*3007 9.5 84%
83*83 40 7.0/5.0 1007*4007,1007*3007 10.7 84%
Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring 1 Fiberglass Reinforced Plastic Grate FRP Grating GRP Gratings Walkway Flooring 2
Concentrated Line Load-Deflection (in mm)
38*38*25
SpanDeflection KG/M² Load limit
450 0.559 3910
600 0.864 2924
900 2.896 1948
1200 5.715 1461
38*38*30
SpanDeflection KG/M² Load limit
300 <0.254 9923.4
450 0.254 4827.6
600 0.508 4112.4
750 1.27 3173.7
900 1.778 2637.3
38*38*38
SpanDeflection KG/M² Load limit
300 0.279 17116
600 0.356 8718
900 0.864 5817
1200 2.261 3755
50*50*50
SpanDeflection KG/M² Load limit
300 0.279 21727
600 0.356 11713
900 0.508 7780
1200 0.914 5834

Label:

frp molded grating,

fiberglass walkway grating,

checker plate flooring
