TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating

TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating
TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating

Gambar besar :  TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating

Deskripsi
Menyoroti:

38x38x25mm FRP plastic flooring grating

,

fiberglass reinforced plastic floor grating

,

FRP grating with fiberglass reinforcement

38×38×25mm Plastic Flooring Fiberglass FRP Grating
FRP Grating (Fiberglass Reinforced Plastic Grating) is a structural grid made from fiberglass-reinforced plastic composite. It's designed for use in applications that require corrosion resistance, high strength, and low maintenance.
Key Features
  • Corrosion Resistance: Doesn't rust or corrode, ideal for harsh environments exposed to chemicals or moisture
  • High Strength-to-Weight Ratio: Lightweight yet maintains high tensile and flexural strength
  • Non-Slip Surface: Textured, grit surface improves traction in wet or oily conditions
  • Low Maintenance: Doesn't corrode or warp, requiring less upkeep than metal grating
  • Fire Retardant: Manufactured with fire-resistant properties to meet industrial safety standards
  • UV Resistance: Special coatings protect against UV degradation for outdoor applications
  • Electrical & Thermal Insulation: Non-conductive material for safer electrical environments
Applications
  • Industrial Platforms: Walkways, platforms, and flooring in chemical plants, power stations, and wastewater facilities
  • Marine Environments: Docks, ship decks, and oil rigs due to saltwater corrosion resistance
  • Public Access Areas: Parks, pedestrian bridges, and access ramps for slip resistance and low maintenance
Types of FRP Grating
  • Molded FRP Grating: One-piece interwoven construction for high impact resistance and durability
  • Pultruded FRP Grating: Assembled load-bearing bars and cross-rods for superior load-bearing capacity

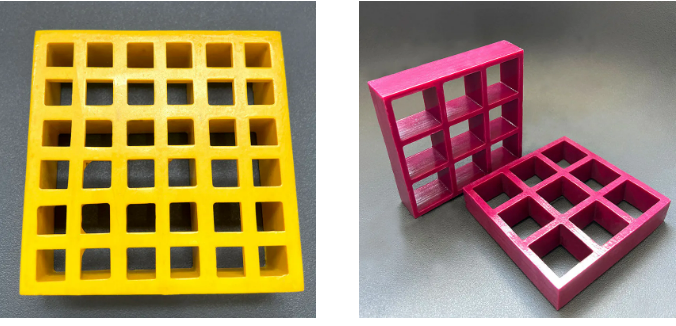

38×38×25mm FRP Grating sample
FRP Grating Specifications
Thickness (mm) Mesh Size (mm) Bar thickness (up/under) Hole Size (mm) Panel Size (mm) Weight (kg/m²) Weight (kg/panel) Load (kg/m²)
25 40×40 5.5/4.5 34×34 1220×3660,1000×4040 11 49.11/44.44 150
38×38 7.0/5.0 31×31 1220×3660,100×4040 12.5 55.82 150
20×20/40×40 5.8/4.5 14.2×14.2 1247×4047 14.5 73.18 150
30 40×40 6.0/4.5 34×34 1220×3660,1000×4040 14 62.51 250
38×38 7.0/5.0 31×31 1220×3660 15 66.98 300
38 40×40 6.0/4.5 34×34 1220×3660,1000×4040
1220×4920		 17.5 78.14/70.7/105.14 1000
38×38 7.0/5.0 31×31 1220×3660,100×4040 19.5 87.07/78.78 1200
40 40×40 7.0/5.0 33×33 1207×3007,1007×3007 28 101.62/84.79 1500
50 50×50 7.0/5.0 43×43 1220×3660,100×4040 23 102.7/92.92 1800
38×38 7.0/5.0 31×31 1220×3600 26 116.1 3000
Cover Plate 3mm 8
8mm 10
TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating 1 TF China Products/Suppliers. 38*38*25mm Plastic Flooring Fiberglass FRP Grating Fiberglass Reinforced Plastic Grating 2
