Hot DIP Galvanized Steel Stair Treads for Step Ladders

Hot DIP Galvanized Steel Stair Treads for Step Ladders
Hot DIP Galvanized Steel Stair Treads for Step Ladders Hot DIP Galvanized Steel Stair Treads for Step Ladders Hot DIP Galvanized Steel Stair Treads for Step Ladders

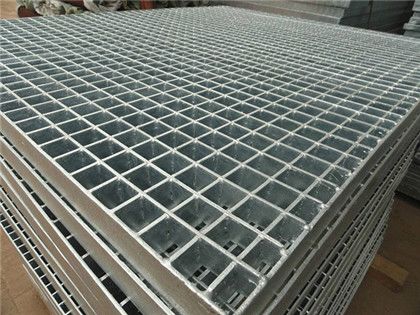

Gambar besar :  Hot DIP Galvanized Steel Stair Treads for Step Ladders

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Hot DIP Galvanized Steel Stair Treads for Step Ladders

Deskripsi
Menyoroti:

galvanized steel stair treads

,

hot dip galvanized step ladder treads

,

steel stair treads for ladders

Hot DIP Galvanized Steel Stair Treads for Step Ladders
Hot DIP Galvanized steel stair treads for step ladders. Steel grating is widely used in road, square, garden, dock, airport, railway, and other city construction projects.
Product Specifications
  • Bearing Bar (Load Bar) Specifications (mm): The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
  • Bearing Bar Pitch (center to center): 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
  • Material: Mild Steel (Low Carbon Steel) or Stainless Steel
  • Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
  • Steel grating standards:
    • China: YB/T4001-1998
    • USA: ANSI/NAAMM (MBG531-88)
    • UK: BS4592-1987
    • Australia: AS1657-1985
    • Japan: JJS
Hot DIP Galvanized Steel Stair Treads for Step Ladders 0
Steel Stair Treads Specification
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load(width×thickness)
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50

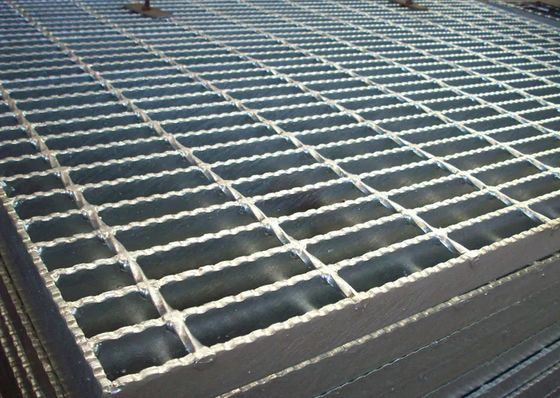

Hot DIP Galvanized Steel Stair Treads for Step Ladders 1

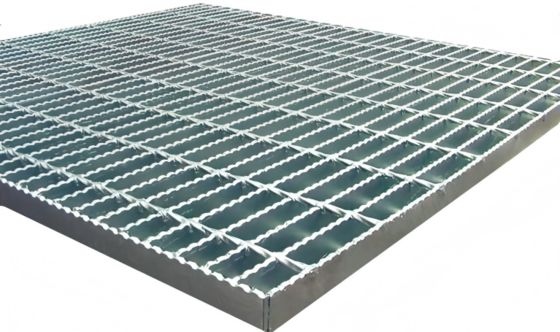

Hot DIP Galvanized Steel Stair Treads for Step Ladders 2

Label:

galvanised steel steps,

bar grating treads,

exterior metal stair treads
