Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

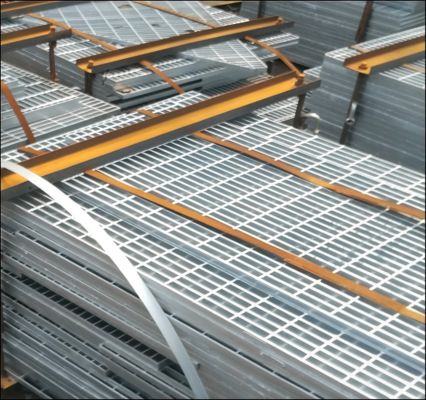

Gambar besar :  Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Deskripsi
Menyoroti:

rust-proof galvanized steel grating

,

serrated steel grating platform

,

galvanized steel grating with warranty

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both, depending on directional requirements.
Serration Types
  • Small Serration: The most common type, used for industrial walkways, staircases, and heavy-duty ramp gratings.
  • Large Serration: Easy to clean, primarily used in industrial kitchens, canteens, and other high-hygiene areas requiring non-slip properties.

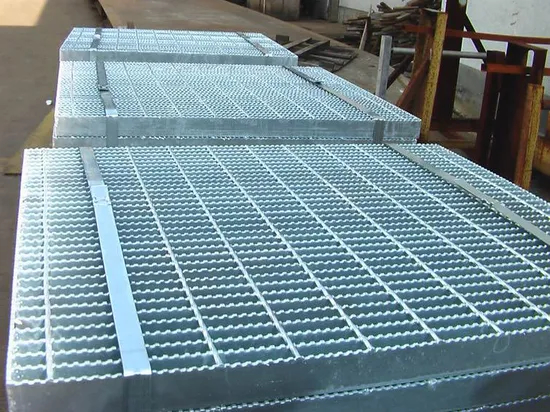

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 0
Serrated steel grating is the most popular grating type due to its strength, cost-efficient production, and ease of installation. It offers high strength-to-weight ratio, non-slip characteristics, and rolled-on serrations that meet strict health and safety requirements. The hot-rolled serrations help prevent lacerations in case of falls.
Common Specifications
Specification Details
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10...100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4",1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing
  • Bandage and Paperboard: For neat steel plate
  • Screw Locking Method: Uses 4 screw rods through aperture for high strength
  • Steel Pallet: Traditional export packing
Payment Term T/T, L/C, Western Union, Credit Card, Trade Assurance
Note: Special Material, High Zinc Coating and New Style can be Customized.
Product Images

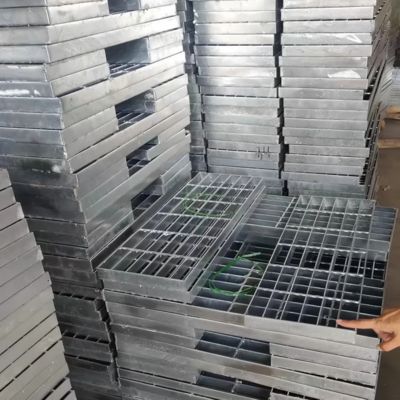

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 1

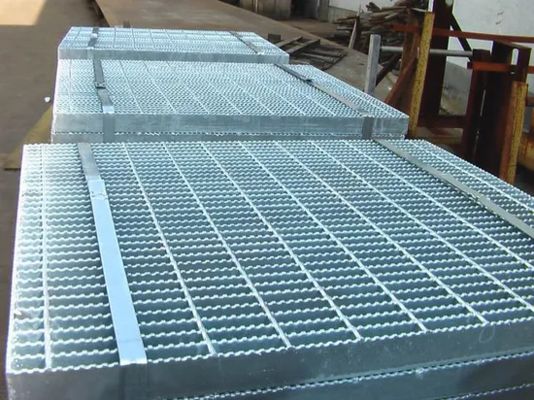

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 2
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating 3

Label:

metal bar grating,

metal grate flooring,

steel grating platform
