19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

Gambar besar :  19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

Deskripsi
Menyoroti:

steel bar grating for platforms

,

metal walkway grating 3/16

,

platform steel grating with warranty

19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating

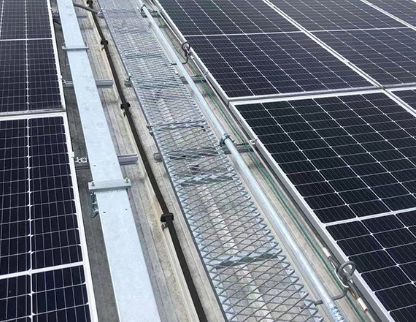

19-W-4, 1 1/4''*3/16'', G325/30/100 galvanized steel bar grating is most popular specification for platform walkway, it is usually used in these areas.
Uses & Applications
  • Bridge Flooring
  • Bridge Sidewalks
  • Catwalks
  • Concrete Reinforcement
  • Dipping Trays
  • Drainage Covers
  • Fencing
  • Fire Escapes
  • Flooring
  • Fork Lift Traffic
  • Freight Cars
  • Ladder Treads
  • Landing Mats
  • Light Guards
  • Loading Ramps
  • Machine and Motor Bases
  • Machine Bases
  • Machinery Safety Guards
  • Machinery Support
  • Material Screens
  • Mezzanine Floors
  • Motor Bases
  • Ornamental Grills
  • Overhead Signs
  • Paint Booths
  • Partitions
  • Platforms
  • Racks & Shelving
  • Ramps
  • Running Boards
  • Security Screens
  • Snow Fences
  • Solar Screens
  • Stage Flooring
  • Stairs
  • Strainers
  • Tree & Pole Guards
  • Trench Covers
  • Trenches
  • Truck Beds
  • Truck Grills
  • Ventilating Screens
  • Walkways
  • Wash Racks
  • Window Guards
G325 steel grating width and thickness of bearing bar 32*5mm, 1 1/4''*3/16''
30 bearing bar spacing
100 cross bar spacing
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 0
Common Specification of Steel Grating
Remarks Special Material, High Zinc Coating and New Style can be Customized.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing.
Payment Term T/T, L/C, Western Union, Credit Card, ****** Trade Assurance
Product Name Hot dip galvanized steel metal grating
19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 1 19-W-4 1 1/4′ ′ *3/16′ ′ Metal Grate Steel Bar Grating for Platform Walkway Grating 2
