Platform Stainless Steel Grating Pressure Welded Grating Plate

Platform Stainless Steel Grating Pressure Welded Grating Plate
Platform Stainless Steel Grating Pressure Welded Grating Plate
Platform Stainless Steel Grating Pressure Welded Grating Plate Platform Stainless Steel Grating Pressure Welded Grating Plate Platform Stainless Steel Grating Pressure Welded Grating Plate Platform Stainless Steel Grating Pressure Welded Grating Plate

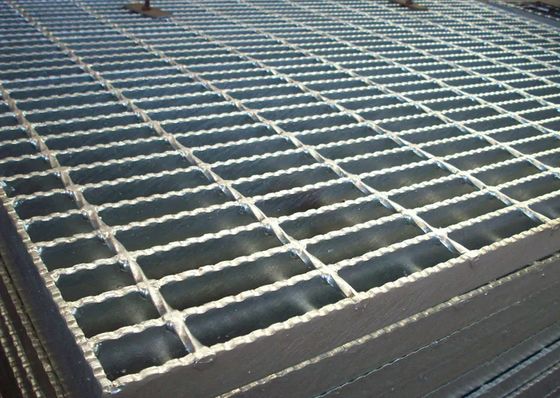

Gambar besar :  Platform Stainless Steel Grating Pressure Welded Grating Plate

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Kontak

Platform Stainless Steel Grating Pressure Welded Grating Plate

Deskripsi
Menyoroti:

stainless steel pressure welded grating

,

platform steel grating plate

,

pressure welded steel grating

Platform Stainless Steel Grating Pressure Welded Grating Plate

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.

Mild carbon steel provides an economical, high strength for use in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.

Platform Stainless Steel Grating Pressure Welded Grating Plate 0
Description
  • Structure: Welding with flat steel and cross/round bars with certain distances.
  • Features: High strength, light structure, high bearing capacity.
  • Surface: The hot dipped zinc coating gives the product excellent anti-corrosion properties.
Steel Grating Specification
Load Bearing Flat Bar size Thickness≥3mm, depth ≥19mm
19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5.....40X6, 40X8, 40X10,....90X6....
Pitch of Load bearing flat bars(mm) 12.5,15, 20, 30, 30.6, 32.5, 34, 34.8, 35.3, 40, 60, 80...
Pitch of cross bars(mm) 38.1, 50, 50.8, 70, 75, 80, 99,100, 101.6, 102...
Steel Grating Standard
Country Steel grating standard Steel material standard Hot galvanizing standard
China YB/T4001-1998 GB 700-88 GB/T13912-2002
USA ANSI/NAAMM(MBG531-88) ASTM (A36) ASTM(A123)
England BS4592-1987 BS4360 (43A) BS729
Australia AS1657-1992 AS3679 AS1650
Detailed Specifications
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'',etc
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

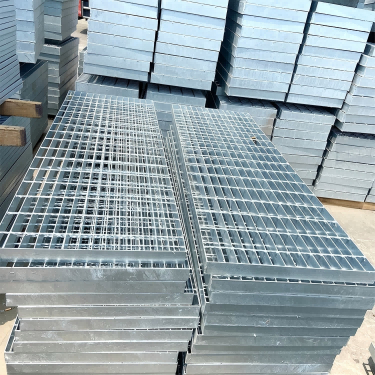

Platform Stainless Steel Grating Pressure Welded Grating Plate 1

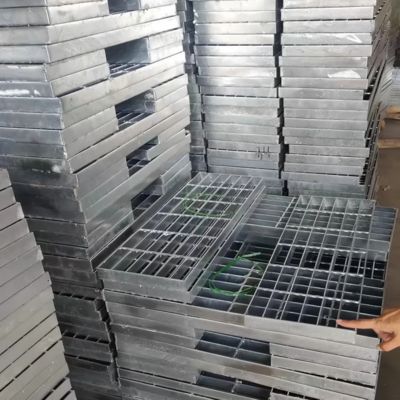

Platform Stainless Steel Grating Pressure Welded Grating Plate 2

Label:

metal bar grating,

metal grate flooring,

steel grating platform
