Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating
Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Gambar besar :  Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman: 5-9 hari kerja
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating

Deskripsi
Menyoroti:

heavy duty steel grating with warranty

,

galvanized steel trench cover

,

anti-slip welded bar grating

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating
Press-locked steel bar grating made by fixed size flat steel through slotted, pressure lock plug, finish, etc process. At the intersection point of flat steel and horizontal pole, press horizontal pole into loading flat steel, then fixed it. Sometimes the horizontal pole also used flat steel.
The grating is widely used for floor, catwalk, Mezzanines/decking, stair tread, fencing; vault bin floor floor, ramp, dock/warehouse, all kinds of trench cover, window and machinery safe guards, wash rack, ventilation screen, storage rack, suspended ceiling, drainage pit cover and etc.

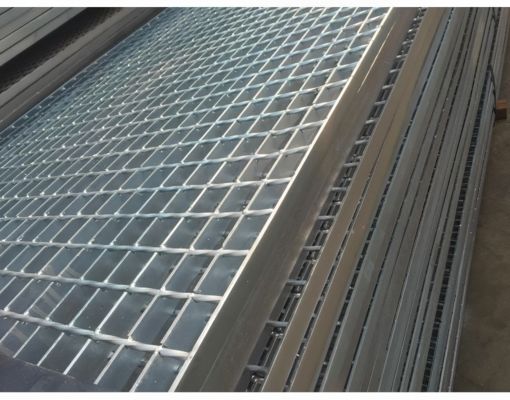

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 0
Product Specifications
Material 1.Carbon Steel Q235 2.Stainless Steel 304 / 316
Type Press lokced / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space : 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992

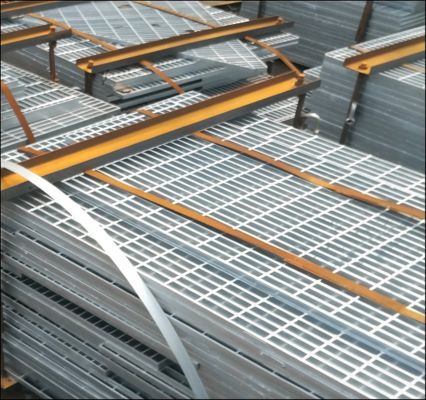

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 1
Zhongzheng Welding Mould List
No. Bearing Bar Pitch (mm) Standard Panel Width (Bearing Bar Thickness 5mm) Bearing Bar Number (PC) Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch.
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17

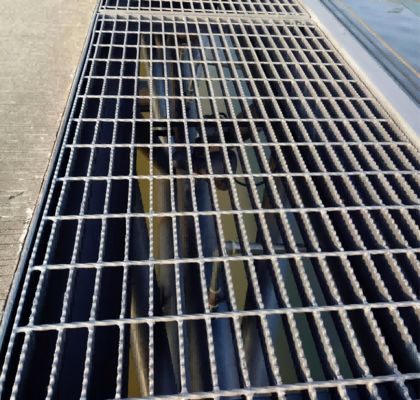

Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 2 Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating 3

Label:

heavy duty bar grating,

metal drain grates,

industrial floor grates
