Gambar besar :  Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Syarat-syarat pembayaran: Bisa dinegosiasikan
Menyediakan kemampuan: 100 ton/minggu
Kontak

Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

Deskripsi
Menyoroti:

galvanized steel grating walkway

,

welded steel grating platform

,

serrated steel grating flooring

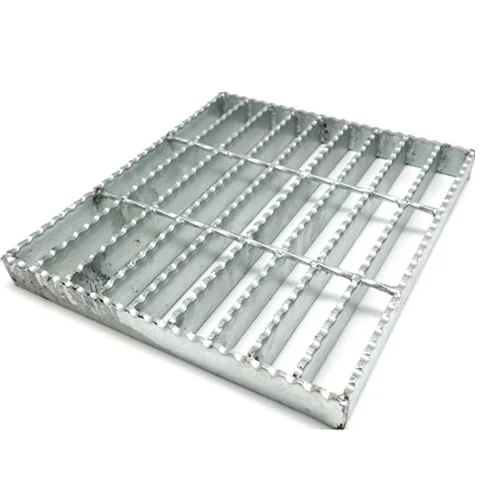

Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform
Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them. It is designed to hold heavy loads with minimal weight and is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas.
Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform 0
Item Description
Bearing Bar
  • 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
  • I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
  • US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch
  • 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
  • US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar

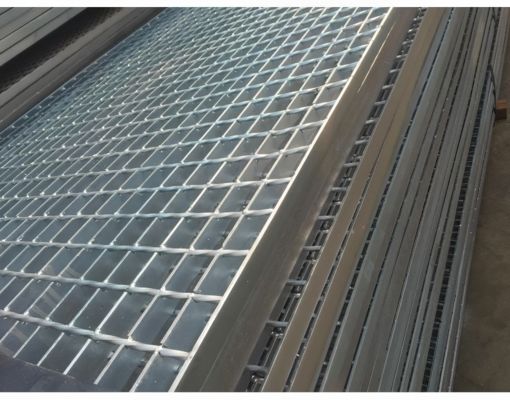

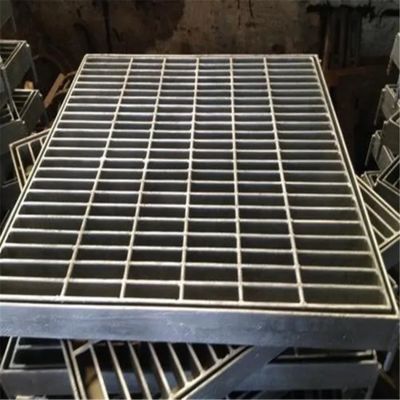

Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform 1 Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform 2

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
