Premium Serrated Steel Grating for Secure Platform Surfaces

Premium Serrated Steel Grating for Secure Platform Surfaces
Premium Serrated Steel Grating for Secure Platform Surfaces Premium Serrated Steel Grating for Secure Platform Surfaces Premium Serrated Steel Grating for Secure Platform Surfaces

Gambar besar :  Premium Serrated Steel Grating for Secure Platform Surfaces

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Syarat-syarat pembayaran: Bisa dinegosiasikan
Kontak

Premium Serrated Steel Grating for Secure Platform Surfaces

Deskripsi
Menyoroti:

serrated steel grating for platforms

,

secure steel grating surfaces

,

premium serrated grating with warranty

Premium Serrated Steel Grating for Secure Platform Surfaces

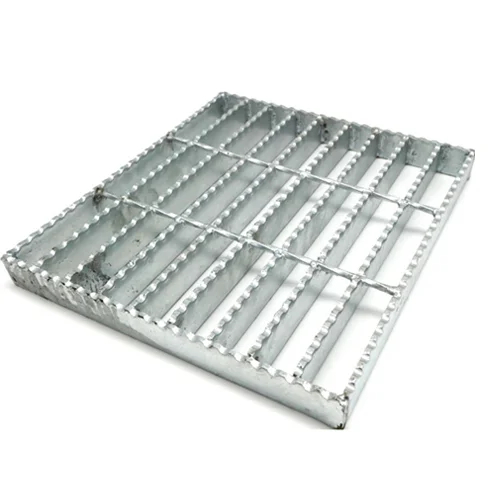

Serrated grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both directions depending on application requirements. Two serration patterns are available:

  • Small Serration: Most commonly used for industrial walkways, staircases, and heavy-duty ramp gratings.
  • Large Serration: Designed for easy cleaning, primarily used in industrial kitchens, canteens, and other high-hygiene areas requiring superior non-slip properties.
Premium Serrated Steel Grating for Secure Platform Surfaces 0
Standard Specifications
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar (width×thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar (width×thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
Technical Specifications

Materials: Q195, Q235, Q235B / 304, 316 Stainless Steel

Bearing Bar: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US Standard: 1" x3/16", 1 1/4" x3/16", 1 1/2" x3/16", 1" x1/4", 1 1/4" x1/4", 1 1/2" x1/4", 1" x1/8", 1 1/4" x1/8", 1 1/2" x1/8" etc

Bearing Bar Pitch: 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc

Twisted Cross Bar Pitch: 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc

Steel Grade: ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc

Surface Treatment: Black, self color, hot dip galvanized, painted, spray coating

Grating Style: Plain/Smooth, Serrated/teeth, I bar, serrated I bar

Grating Standard:
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS

Premium Serrated Steel Grating for Secure Platform Surfaces 1 Premium Serrated Steel Grating for Secure Platform Surfaces 2

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
