Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads
Anti-Slip Serrated Steel Grating for Walkway and Stair Treads
Anti-Slip Serrated Steel Grating for Walkway and Stair Treads Anti-Slip Serrated Steel Grating for Walkway and Stair Treads Anti-Slip Serrated Steel Grating for Walkway and Stair Treads Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

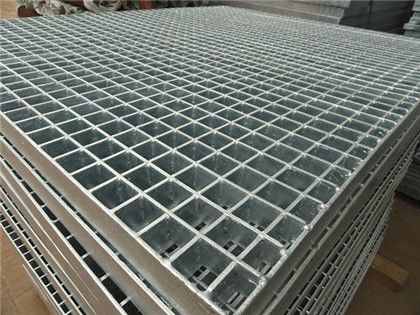

Gambar besar :  Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

Detail produk:
Tempat asal: CINA
Nama merek: GNEE
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Harga: negotiable
Kemasan rincian: Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Syarat-syarat pembayaran: Bisa dinegosiasikan
Kontak

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

Deskripsi
Menyoroti:

anti-slip serrated steel grating

,

steel grating for walkway treads

,

serrated steel grating for stairs

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads
This anti-slip serrated steel grating is engineered to enhance safety on walkways, stair treads, and industrial platforms. Constructed from high-strength steel, the serrated surface prevents slipping even in wet or oily conditions. The grating is hot-dip galvanized or painted for long-lasting corrosion protection. It is widely used in factories, power plants, oil platforms, and construction sites where worker safety is critical. Available in custom sizes and designs, it can be tailored to fit any project requirement. Quick to install and easy to maintain, this steel grating ensures efficient material flow, safe walking surfaces, and reliable performance under heavy loads.

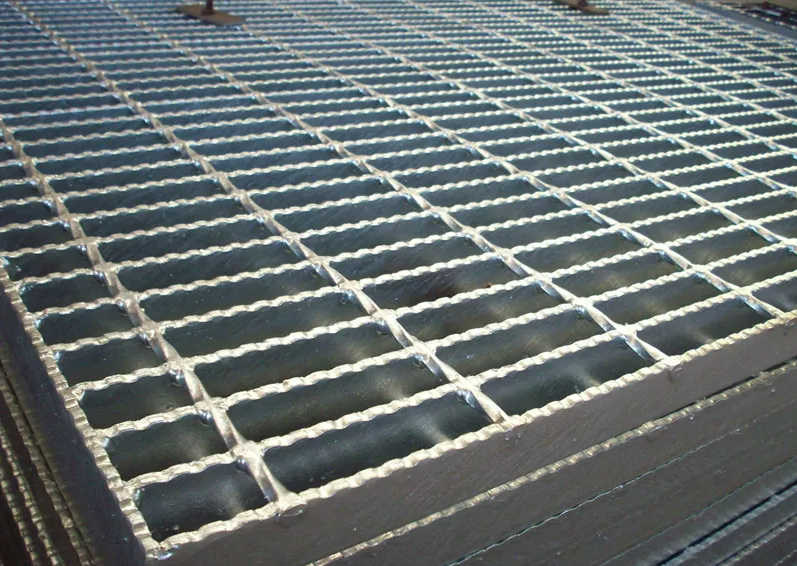

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads 0
Technical Specifications
Process Type Technical Features Applicable Scenarios Customer Value
Press Welding Process The load-bearing flat steel and crossbars are joined by high-temperature, high-pressure resistance welding. The weld penetration depth is ≥3 mm, ensuring there are no cold welds or weld separation and providing high overall rigidity. Long-Term Load-Bearing Scenarios: (such as equipment platforms and walkways) are preferred for areas subject to heavy loads and frequent use. Reduce long-term maintenance costs and prevent safety hazards caused by solder joint failure.
Press Locking The crossbar is mechanically pressed into the flat steel channel without welding, enabling quick installation and easy modification. Temporary structures requiring frequent disassembly (e.g., maintenance platforms) Reduce installation time, enable flexible retrofitting, and lower construction costs.
Product Specifications
Pitch of Bearing bar Cross-bar Pitch 20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
30 50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
40 50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of Bearing bar Cross-bar Pitch 32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
30 50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
40 50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

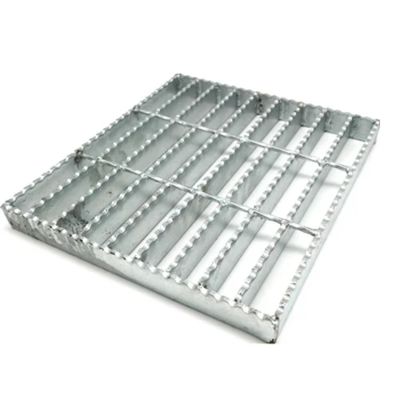

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads 1 Anti-Slip Serrated Steel Grating for Walkway and Stair Treads 2

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
