Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

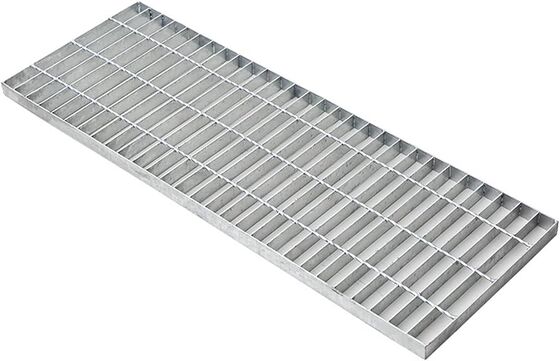

Gambar besar :  Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

Detail produk:
Nama merek: Gnee
Sertifikasi: ISO9001
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 pcs
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 meter persegi/meter persegi per bulan
Kontak

Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

Deskripsi
Menyoroti:

Press Welded Steel Bar Grating

,

High Strength Heavy Duty Grating

,

Robust Structure Metal Grating

Heavy-Duty Press Welded Steel Bar Gratings

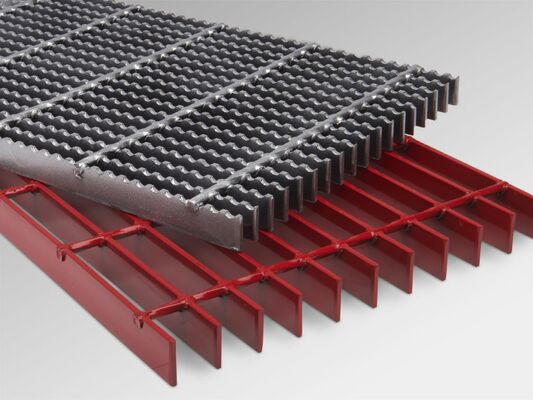

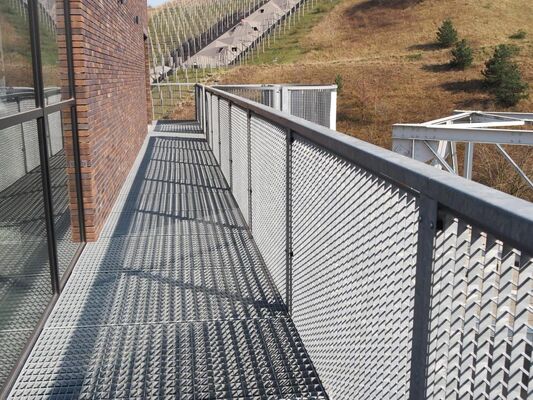

Steel bar grating is engineered for high strength and durability, manufactured from carbon steel, aluminum, or stainless steel. Available in four production types (welded bar, press-locked, swage-locked, and riveted) with smooth or serrated surface options. These versatile gratings serve numerous applications including stair treads, walkways, platforms, flooring, trench covers, security screens, and heavy-duty construction projects.
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure 0 Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure 1
Specification Table: HD Grating with Plain Top Type
Specification Code Size of Bearing Bars Bearing Bar Spacing (mm) Cross Bar Spacing (mm) Nominal Weight (kg/m2)
G1508/40/100 150 x 8mm 40 100 284.90
G1308/40/100 130 x 8mm 40 100 247.60
G1208/40/100 120 x 8mm 40 100 229.00
G10010/40/100 100 x 10mm 40 100 234.90
G1008/40/100 100 x 8mm 40 100 191.70
G908/40/100 90 x 8mm 40 100 173.10
G808/40/100 80 x 8mm 40 100 154.40
G758/40/100 75 x 8mm 40 100 145.10
G756/30/100 75 x 6mm 30 100 140.10
G756/40/100 75 x 6mm 40 100 110.10
G706/30/100 70 x 6mm 30 100 131.10
G706/40/100 70 x 6mm 40 100 103.20

1. Cross bar sizes typically measure 8mm x 8mm or can be customized to your exact requirements.

2. For detailed safe load data, please contact our engineering team for professional consultation.

Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure 2
