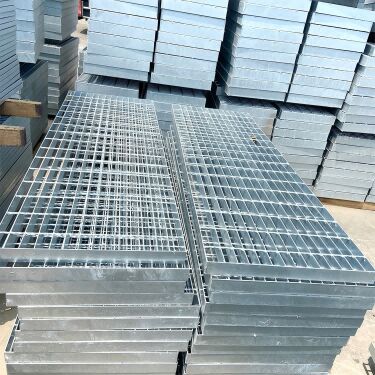

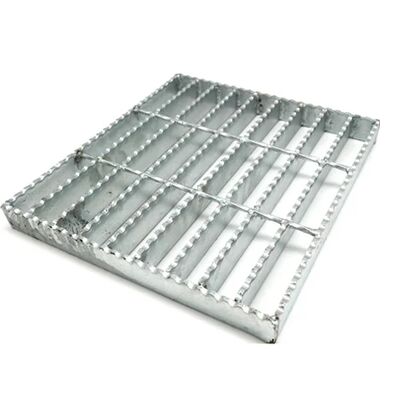

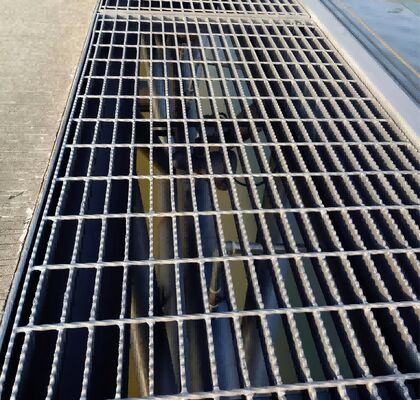

Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor

Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor
Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor

Gambar besar :  Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 pcs
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 meter persegi/meter persegi per bulan
Kontak

Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor

Deskripsi
Menyoroti:

Plain Steel Bar Grating

,

Mild Steel Cross Bar Grating

,

Hot DIP Galvanized Floor Grating

Hot DIP Galvanized Finish Plain Steel Bar Grating for Floor
Product Specifications
  • Bearing Bar (Load Bar) Specifications (mm): Plain/serrated type: 20x3 to 100x10; I-section type: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4
  • Bearing Bar Pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm (custom available)
  • Cross Bar Pitch (center to center): 38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm
  • Material: Mild Steel (Low Carbon Steel) or Stainless Steel
  • Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
  • Standards Compliance: China (YB/T4001-1998), USA (ANSI/NAAMM MBG531-88), UK (BS4592-1987), Australia (AS1657-1985), Japan (JJS)
Detailed Specifications
No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8''
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3 Twisted Cross Bar Pitch 38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4''
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain/Smooth, Serrated/teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor 0 Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor 1 Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor 2

Label:

galvanized bar grating,

steel floor grating,

steel grating panels
