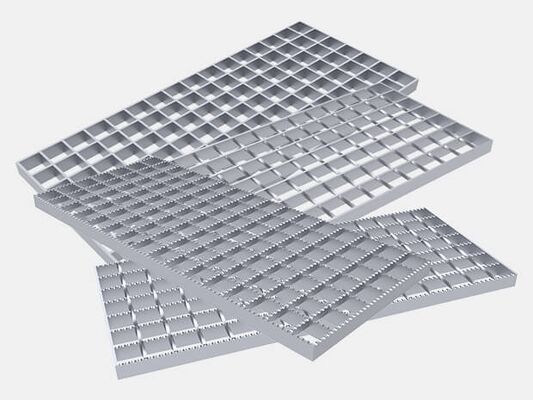

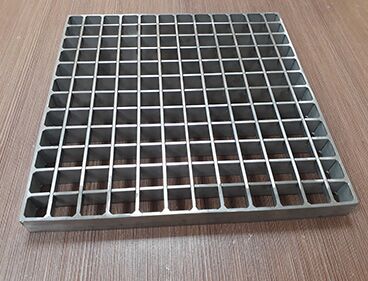

Hot Dipped Galvanized Steel Grating with Serrated Surface and Customizable Sizes for Industrial Walkways

Gambar besar : Hot Dipped Galvanized Steel Grating with Serrated Surface and Customizable Sizes for Industrial Walkways

Detail produk:

Nama merek:	Gnee

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	2 buah
Kemasan rincian:	Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman:	Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan:	300000 Meter Persegi/Meter Persegi per Bulan

Kontak

Hot Dipped Galvanized Steel Grating with Serrated Surface and Customizable Sizes for Industrial Walkways

Deskripsi

Menyoroti:

Hot Dipped Galvanizing Steel Grating

Serrated Surface Steel Bar Grating

Customizable Sizes Metal Grating

High Quality Modern Style Steel Bar Grating

Steel Bar Grating provides exceptional safety, strength, durability, and aesthetic appeal for both industrial and architectural applications. Commonly used in catwalks, factory floors, platforms, railing infill panels, and stair treads.

Material Options

Available in Low Carbon Steel or Stainless Steel to meet various environmental and strength requirements.

Surface Treatment

Choose from untreated, painting, or hot-dipped galvanizing for optimal corrosion resistance and longevity.

Technical Specifications

Product Name	steel grating, walkway steel grating, building materials steel bar grating, galvanized steel grid
Material Standard	Stainless steel, Low carbon steel, etc.
Bearing Bar (width*thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10...100x10mm etc; I shape bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
Surface Treatment	Untreated (black), hot-dipped galvanized, powder coated, painting or as per customers' requirement.
Grating Style	Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing	Packed on pallets. Other special packaging available according to customers' requirements.

Note: Other sizes can be customized according to customers' specific requirements.
