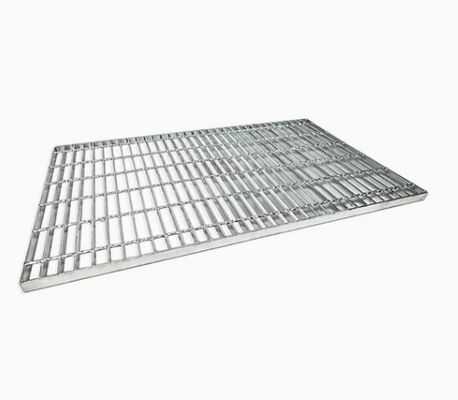

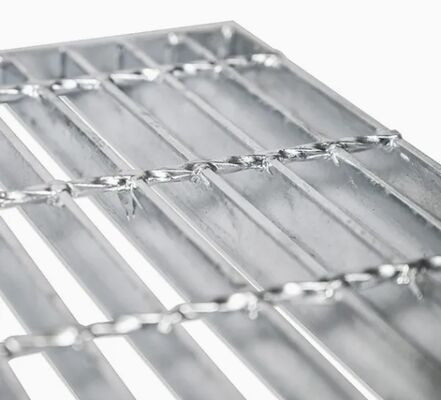

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors
Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Gambar besar :  Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Deskripsi
Menyoroti:

Heavy Duty Steel Bar Grating

,

Stainless Steel Metal Grating

,

19W4 Steel Grating

Stainless Steel Catwalk Deck Floor Bar Grating
Steel bar grating features high strength and firm structural integrity, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple manufacturing methods including welded, press-locked, swage-locked, and riveted gratings. Surface options include smooth and serrated patterns for enhanced traction. With diverse styles and sizes available, steel gratings are extensively used in stair treads, walkways, platforms, flooring systems, trench covers, wheeled equipment, security screens, and heavy-duty construction applications.
Technical Specifications
Standard Dimensions:
  • Bearing Bar Pitches: 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90mm (25, 30, 34, and 40mm recommended)
  • Cross Bar Pitches: 24-200mm (50mm, 76mm, and 100mm recommended)
  • Bearing Bar Shapes: F - Plain style, S - Serrated style, I - I-section style
  • Surface Treatments: G - Hot dipped galvanized, P - Painted, U - Untreated
Metal Bar Grating Components
Span Total span measurement
Width Panel width dimension
Bearing Bars Primary load carrying structural elements
Bearing Bars Spacing Center-to-center measurement in 1/16″ increments. Standard industrial flooring spacing is 19/16″ (1-3/16″). Other common spacings include 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth Ranges from 3/4″ to 7″ depending on load requirements
Bearing Bars Thickness Ranges from 1/8″ to 1/2″ based on anticipated loads
Cross Bars Structural elements that secure bearing bar positioning
Cross Bar Spacing Center-to-center measurement in 1″ increments. Standard spacing is 4″ or 2″ on center.
Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors 0 Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors 1

Label:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
