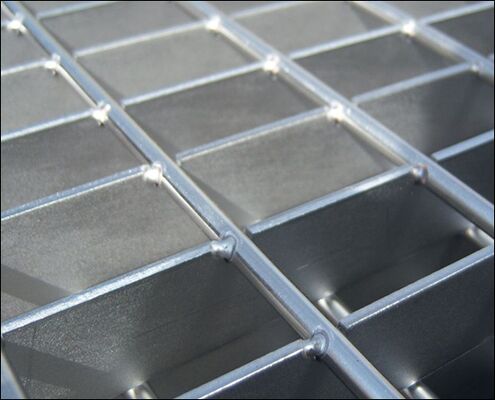

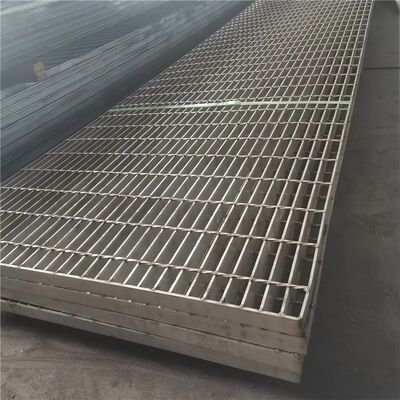

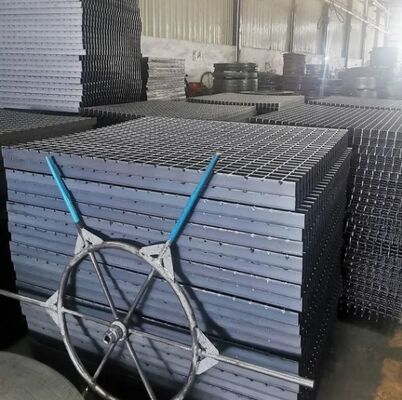

Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways

Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways
Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways

Gambar besar :  Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways

Deskripsi
Menyoroti:

Hot-Dip Galvanized Steel Grating

,

Anti-Slip Bar Grating

,

High Load-Bearing Metal Grating

Stainless Steel & Carbon Steel Welded Bearing Bar Grating
High-strength steel bar grating with firm structural integrity, manufactured from carbon steel, aluminum steel, or stainless steel. Available in multiple configurations for diverse industrial applications including stair treads, walkways, platforms, and heavy-duty construction projects.
Manufacturing Methods & Surface Types
  • Manufacturing Methods: Welded, press-locked, swage-locked, and riveted gratings
  • Surface Types: Smooth and serrated grating surfaces
  • Applications: Stair treads, walkways, platforms, floors, security screens, wheeled equipment, and industrial covers
Surface Finishing Options
Standard steel grating features hot-dipped galvanized coating. Custom zinc coatings available according to client specifications. Provides excellent corrosion resistance and aesthetic appeal for industrial construction projects.
Metal Bar Grating Technical Specifications
Span Total span measurement
Width Panel width dimension
Bearing Bars Primary load-carrying structural elements
Bearing Bars Spacing Center-to-center measurement in 1/16″ increments. Standard industrial spacing: 19/16″ (1-3/16″). Other options: 15/16″, 11/16″, 1/2″, and 7/16″
Bearing Bars Depth Range from 3/4″ to 7″ depending on load requirements
Bearing Bars Thickness Range from 1/8″ to 1/2″ based on anticipated loads
Cross Bars Secure bearing bar positioning and alignment
Cross Bar Spacing Center-to-center measurement in 1″ increments. Standard spacing: 4″ or 2″ on center
Anti-Corrosion Surface Treatments
Four protective finishes available for carbon steel bar grating:
  • Black / Bare Steel: No protective coating - economical option with limited service life
  • Painted Coat: General rust protection with customizable color options
  • Electro-galvanized: Light zinc coating suitable for dry environments
  • Hot-dip galvanized: Premium corrosion protection compliant with ASTM A123 or GB/T 13912-2002 standards
Hot-Dip Galvanized Anti-Slip High Load-Bearing Steel Grating for Stair Treads and Walkways 0

Label:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
