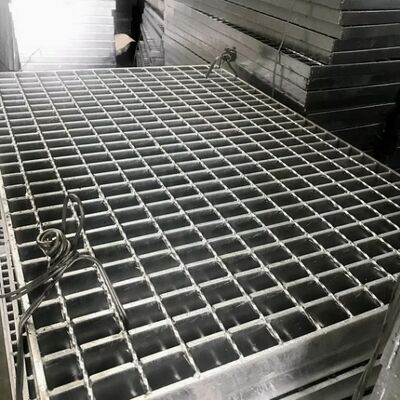

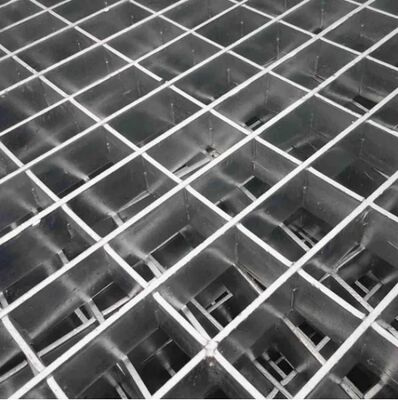

Galvanized 304/316 stainless steel bar grating - High-load-bearing metal grating untuk penggunaan industri
Properti Dasar
Nama Merek:
Gnee
Properti Perdagangan
Jumlah Pesanan Minimum:
2 buah
Kemampuan Pasokan:
300000 Meter Persegi/Meter Persegi per Bulan
Ringkasan Produk
304/316/Galvanis Bersertifikat Gelap Bar Baja Rustless Gelap baja galvanis banyak digunakan di sebagian besar bangunan industri dan komersial umum.dan sistem ventilasi. Spesifikasi Produk Tidak. Artikel Deskripsi 1 Bar bantalan 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, ... 75x10mm 2 Pitch Bar ...
Detail Produk
Menyoroti:
Gelas baja galvanis
,304/316 Goresan batang baja tahan karat
,Gelap logam yang tahan beban tinggi
Deskripsi Produk
304/316/Galvanis Bersertifikat Gelap Bar Baja Rustless
Gelap baja galvanis banyak digunakan di sebagian besar bangunan industri dan komersial umum.dan sistem ventilasi.
Spesifikasi Produk
| Tidak. | Artikel | Deskripsi |
|---|---|---|
| 1 | Bar bantalan | 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, ... 75x10mm |
| 2 | Pitch Bar Bearing | 12.5, 15, 20, 23.8525, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm Standar AS: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", dll. |
| 3 | Cross Bar Pitch | 38, 50, 76, 100, 101,6mm |
| 4 | Bahan | Q235, A36, SS304 |
| 5 | Pengolahan Permukaan | Hitam, galvanisasi panas, cat |
| 6 | Standar | Cina: YB/T 4001.1-2007 AS: ANSI/NAAMM (MBG531-88) Inggris: BS4592-1987 Australia: AS1657-1985 |
Kepatuhan Standar Internasional
| Negara | Standar Grating Bar | Baja | Galvanisasi panas |
|---|---|---|---|
| P.R. Cina | YB/T 4001.1-2019 | GB/T700-2006 | GB/T13912-2002 |
| Amerika Serikat | ANSI NAAMM MBG 531-00 | ASTM (A36) | ASTM A123 |
| Inggris Inggris | BS 4592-1987 | BS4360 ((43A) | BS729 |
| Australia | AS 1657-1985 | AS3697 | AS 1650 |
| Eropa | EN 1090 | EN 10025:1993 | EN ISO 1461-1999 |
