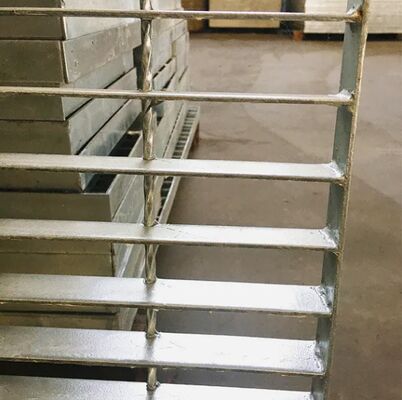

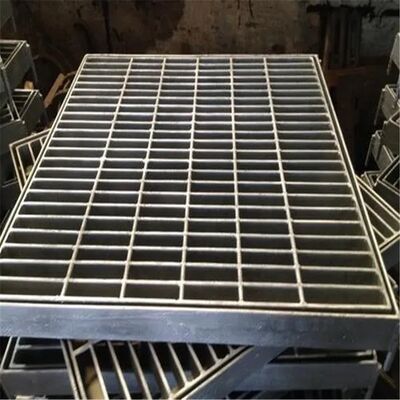

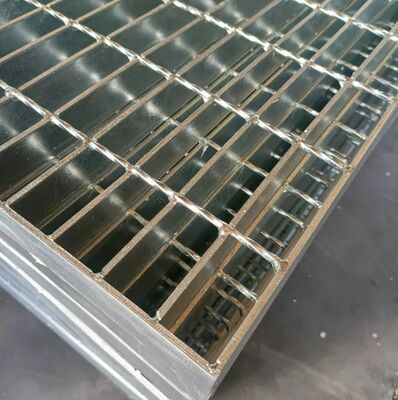

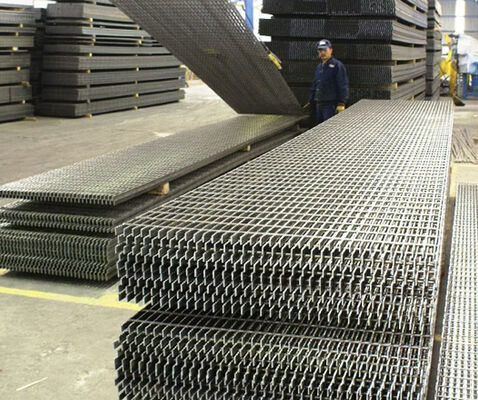

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications
Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Gambar besar :  Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications

Deskripsi
Menyoroti:

Hot Dipped Galvanized Steel Grating

,

Customizable Sizes Bar Grating

,

High Load-Bearing Metal Grating

Factory Customized Steel Grating Solutions
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed to hold heavy loads with minimal weight. The bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them. This versatile product is widely used as floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in industrial settings including factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Product Specifications
Product Name Steel Bar Grating
Material Mild Steel (Low Carbon Steel), S235, S275JR, A36, Stainless Steel SS304, SS316, Aluminum 3003, 5052
Surface Treatment Hot dipped galvanized, polished, or untreated
Bearing Bar (Width x Thickness) 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 75x10mm
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm
US standard: 1"x3/16", 1¼"x3/16", 1½"x3/16", 1"x¼", 1¼"×¼", 1½"x¼" etc.
Cross Bar Pitch 38, 50, 76, 100, 101.6mm or customized
Standard Grating Specifications
Bearing Bar: 20×3 to 60×5
Bearing Bar Pitch Cross-bar Pitch G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
30 50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
40 50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Applications
  • Working Platforms
  • Handrail Infill
  • Walkways
  • Bridge Decking
  • Stair Treads
  • Transformer Reservoir
  • Trench Covers
  • Ceiling Systems
  • Grating Fence
  • Sunshade Panels
Hot Dipped Galvanized Steel Grating with Customizable Sizes for High Load-Bearing Applications 0

Label:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
