Hot DIP Galvanized Steel Grating dengan 25 x 5 x 3 I Bar Type dan 30mm Bearing Bar Pitch untuk platform tugas berat
Nama Merek:Gnee
Jumlah Pesanan Minimum:2 buah
Kemampuan Pasokan:300000 Meter Persegi/Meter Persegi per Bulan
Tag:
Detail Produk
Menyoroti:
kisi baja galvanis hot dip
,25 x 5 x 3 I Bar Tipe Metal Grating
,30mm Bearing Bar Pitch Bar Grating
Deskripsi Produk
Hot DIP Galvanized Steel Grating Mezzanine Lantai
Hot DIP galvanized metal grating tersedia dalam tiga gaya utama: Plain Style Steel Grating, Serrated Style Steel Grating, dan I Bar Type Steel Grating.Solusi kisi tahan lama ini banyak digunakan dalam platform struktur bajaKami menawarkan desain grating baja standar dan manufaktur khusus untuk memenuhi kebutuhan pelanggan tertentu.
Spesifikasi Produk
Spesifikasi batang bantalan (bar beban)
Tipe polos & bergerigi:20 x 3 sampai 100 x 10 mm
Jenis I-Section:25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, dll.
Jenis I-Section:25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, dll.
Bantalan Bar Pitch (Pusat ke Pusat)
12.5, 15, 25, 30, 30.1632 tahun.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm (30, 40, 60 mm direkomendasikan)
Standar Amerika:1 "x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4) dan lebih
Standar Amerika:1 "x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4) dan lebih
Cross Bar Pitch (Pusat ke Pusat)
38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm dan lebih
Materi yang Tersedia
Baja ringan (baja karbon rendah) atau baja tahan karat
Pilihan Pengolahan Permukaan
Tidak diobati, Lukisan, atau Hot DIP Galvanizing
Standar Gelas Baja
- Cina: YB/T4001-1998
- AS: ANSI/NAAMM (MBG531-88)
- Inggris: BS4592-1987
- Australia: AS1657-1985
- Jepang JJS
Spesifikasi Rinci
| Artikel | Deskripsi Rinci |
|---|---|
| Bar bantalan | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm dll; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 dll Standar AS: 1" x 3/16", 1 1/4" x 3/16", 1 1/2" x 3/16", 1" x 1/4", 1 1/4" x 1/4", 1 1/2" x 1/4", 1" x 1/8", 1 1/4" x 1/8", 1 1/2" x 1/8" dll |
| Pitch Bar Bearing | 12.5, 15, 20, 25, 30, 30.16, 30.332 tahun.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm dll Standar AS: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 dll |
| Pitch Cross Bar yang diputar | 38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" dll |
| Kelas baja | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, baja ringan & baja karbon rendah, dll. |
| Pengolahan Permukaan | Hitam, warna sendiri, galvanis panas, dicat, lapisan semprotan |
| Gaya Grating | Bilah gigi, I bar, serrated I bar |
| Standar kisi | Cina: YB/T 4001.1-2007, AS: ANSI/NAAMM ((MBG531-88), Inggris: BS4592-1987, Australia: AS1657-1985, Jepang: JIS |

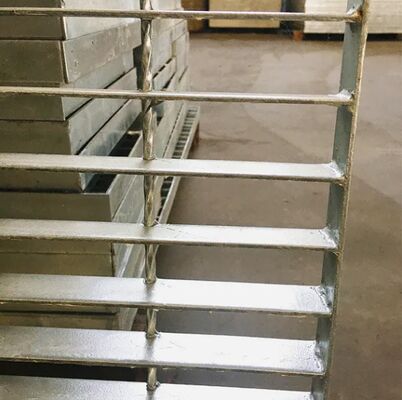

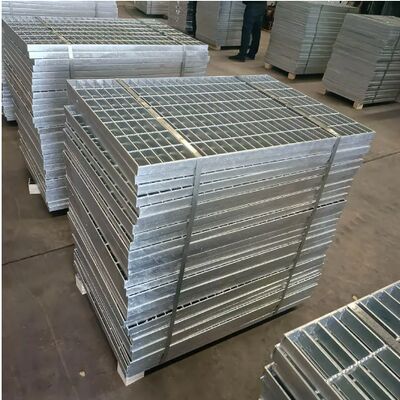

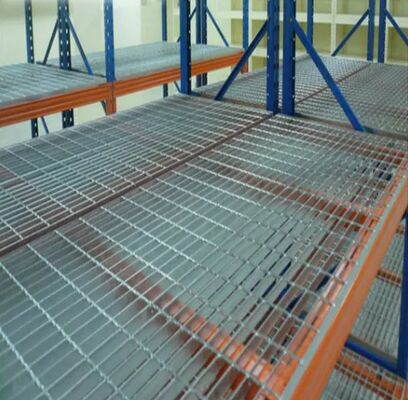

Gambar Produk
Ringkasan Produk
Hot DIP Galvanized Steel Grating Mezzanine Lantai Hot DIP galvanized metal grating tersedia dalam tiga gaya utama: Plain Style Steel Grating, Serrated Style Steel Grating, dan I Bar Type Steel Grating.Solusi kisi tahan lama ini banyak digunakan dalam platform struktur bajaKami menawarkan desain ...
