Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers

Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers
Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers

Gambar besar :  Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers

Deskripsi
Menyoroti:

Heavy Duty Steel Grating

,

Galvanized Bar Grating

,

Industrial Walkways Metal Grating

Heavy Duty Metal Trench Drain Cover Floor Grate
Industrial Walkways Steel Mesh Grid Tooth Welded Galvanized Bar Grating
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is engineered to support heavy loads with minimal weight.
Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Materials of Steel Metal Grating
Bearing Bar Materials
  • Low Carbon Steel Smooth Flat Bars
  • Low Carbon Steel Serrated Bars
  • Low Carbon I-Shaped Steel Bars
Cross Bar Materials
  • Steel Twisted Square Cross Bars
  • Steel Round Cross Bars
Stainless Steel Options
  • Stainless Steel 304 Grade Flat Bars
  • Stainless Steel 316 Grade Flat Bars
Popular Specifications of Steel Metal Grating
Item Specifications of Bearing Bar (mm) Diameter of Cross Bar (mm) Pitch of Bearing Bar (mm) Pitch of Cross Bar (mm)
SG253 25x3 6 20,30,40,50 50,100
SG254 25x4 6,8 20,30,40,50 50,100
SG255 25x5 6,8 20,30,40,50 50,100
SG304 30x4 8 20,30,40,50 50,100
SG305 30x5 8 20,30,40,50 50,100
SG355 35x5 8 20,30,40,50 50,100
SG404 40x4 8 20,30,40,50 50,100
SG405 40x5 8 20,30,40,50 50,100
SG455 45x5 8 20,30,40,50 50,100
SG505 50x5 8 20,30,40,50 50,100
SG605 60x5 8 30,40,50,60 50,100
SG705 70x5 8 30,40,50,60 50,100

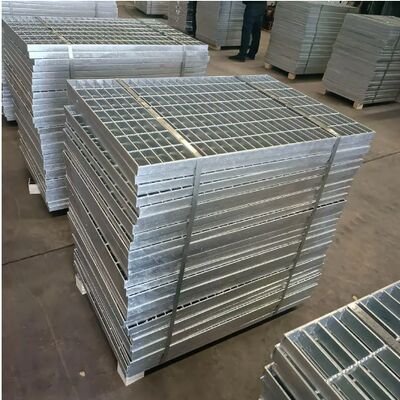

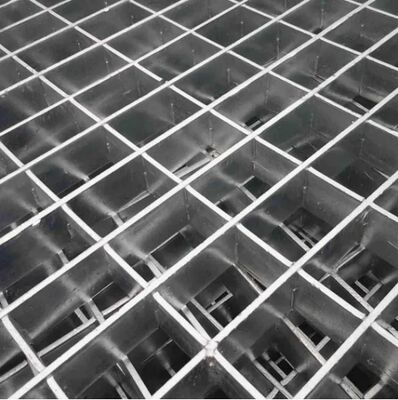

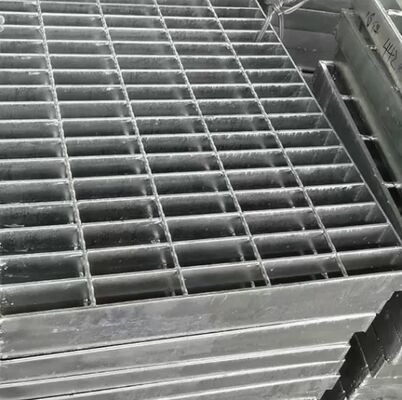

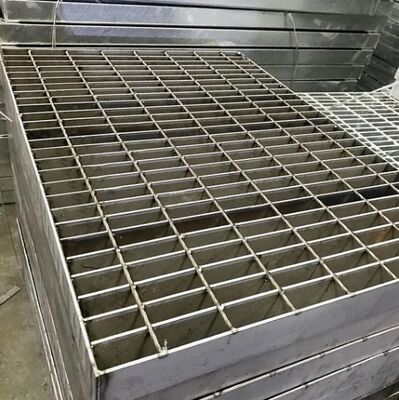

Product Images
Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers 0 Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers 1 Heavy Duty Galvanized Steel Grating for Industrial Walkways and Trench Covers 2

Label:

galvanised steel mesh walkway,

steel walkway grating,

steel mesh flooring
