Hot-DIP Galvanized Heavy Duty Stainless Steel Welded Grating Metal Grating Panels
Properti Dasar
Nama Merek:
Gnee
Properti Perdagangan
Jumlah Pesanan Minimum:
2 buah
Kemampuan Pasokan:
300000 Meter Persegi/Meter Persegi per Bulan
Ringkasan Produk
Hot-DIP Galvanized Steel Grating Gelas baja bar dirancang untuk kekuatan dan daya tahan yang luar biasa, yang diproduksi dari baja karbon, aluminium, atau stainless steel.dengan penguncian pers, swage-locked, dan konfigurasi diikat, dengan desain permukaan halus dan bergerigi sesuai dengan berbagai ...
Detail Produk
Menyoroti:
Hot-DIP Galvanized Steel Grating
,Gelas logam berat
,Kisi Batang Dilas Stainless
Deskripsi Produk

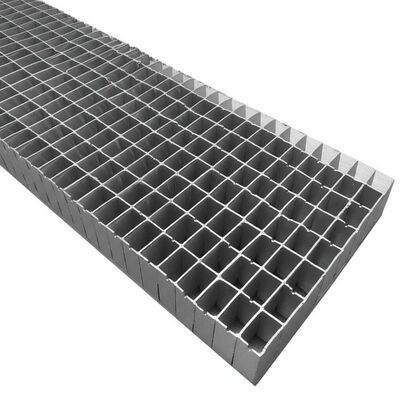

Hot-DIP Galvanized Steel Grating
Gelas baja bar dirancang untuk kekuatan dan daya tahan yang luar biasa, yang diproduksi dari baja karbon, aluminium, atau stainless steel.dengan penguncian pers, swage-locked, dan konfigurasi diikat, dengan desain permukaan halus dan bergerigi sesuai dengan berbagai aplikasi.
Aplikasi yang Serbaguna
Panel kisi baja kami sangat ideal untuk berbagai penggunaan industri dan komersial:
- Lantai tangga dan jalur pejalan kaki
- Platform dan sistem lantai

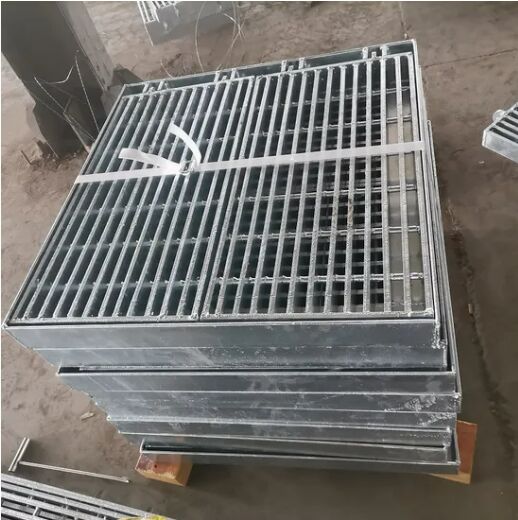

- Penutup parit dan sistem drainase
- Permukaan peralatan roda
- Layar keamanan dan penghalang
- Proyek konstruksi tugas berat
Spesifikasi Produk
| Pitch of Bearing Bar | Pitch lintas bar | 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Pitch of Bearing Bar | Pitch lintas bar | 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Pilihan Pengolahan Permukaan
Kami menawarkan empat akhir tahan korosi untuk baja karbon bar kisi:
- Baja Hitam / Bare:Pilihan yang paling ekonomis dengan ketahanan korosi minimal
- Pakaian yang dicat:Pilihan warna khusus dengan perlindungan karat sedang
- Berbahan bakar batubaraLapisan seng ringan yang cocok untuk lingkungan kering
- Berkualitas tinggi:Perlindungan korosi premium sesuai dengan standar ASTM A123 dan GB/T 13912-2002
