Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes
Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Gambar besar :  Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes

Deskripsi
Menyoroti:

Hot Dip Galvanized Steel Grating

,

Serrated Surface Drain Cover

,

Customizable Sizes Trench Cover

Steel Grating & Bar Grating Solutions
Steel grating is available in various configurations suitable for different applications and load conditions. Hot dip galvanizing or painting provides excellent appearance, durability, and enhanced economy. Galvanized steel grating is widely used in power stations, chemical plants, oil & gas facilities, boiler plants, mining operations, and refineries.
Material Options
Available in Mild Steel (Low Carbon Steel) or Stainless Steel to meet diverse industrial requirements.
Technical Specifications
Plain type and serrated type bearing bars range from 20 x 3 to 100 x 10 mm. I-section types include 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, and 75 x 7 x 4 mm configurations.
No. Item Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3; US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8"
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated / teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
Product Gallery

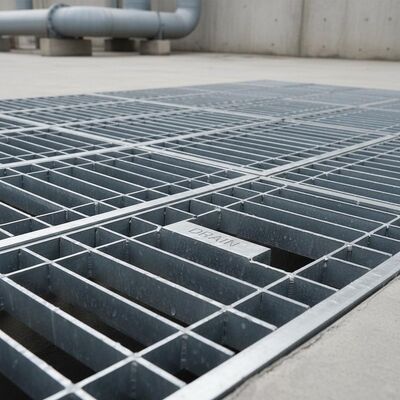

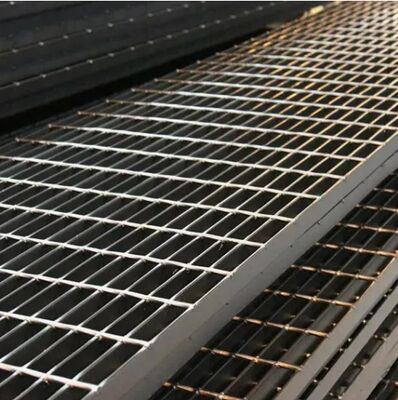

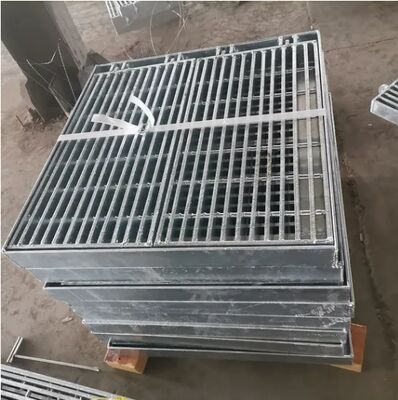

Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 0 Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 1 Hot Dip Galvanized Steel Grating Drain Cover with Serrated Surface and Customizable Sizes 2

Label:

metal driveway drainage grates,

floor trough drain grates,

floor drain grate covers
