Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use
Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

Gambar besar :  Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

Detail produk:
Nama merek: Gnee
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2 buah
Kemasan rincian: Perbaiki dengan sabuk logam Pengepakan dengan palet, bungkus luar dengan film plastik tahan air Fini
Waktu pengiriman: Dikirim dalam 20 hari setelah pembayaran
Menyediakan kemampuan: 300000 Meter Persegi/Meter Persegi per Bulan
Kontak

Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

Deskripsi
Menyoroti:

Hot-Dipped Galvanized Steel Grating

,

Corrosion Resistant Steel Grating

,

High Tensile Strength Metal Bar Grating

Stainless Steel Carbon Metal Floor Grating
High-quality steel grating featuring smooth plain tooth flat bearing bars with galvanized coating, designed for industrial and commercial building applications.
Product Features
Steel grating is manufactured by welding bearing steel bars and cross twisted bars according to required pitch spacing using specialized welding machines. This grid building material offers exceptional performance characteristics:
  • High tensile strength and excellent hardness from quality standard steel materials
  • Exceptional durability and corrosion resistance
  • Superior anti-slip performance for safety
  • Available in various spacing pitches, thicknesses, and heights to meet specific load bearing requirements
Surface Finishing Options
Standard steel grating features hot-dipped galvanized coating, with zinc coating available according to client specifications. Available as hot-dip galvanized steel grating or stainless steel grating with beautiful surface appearance and excellent performance for industrial construction projects.

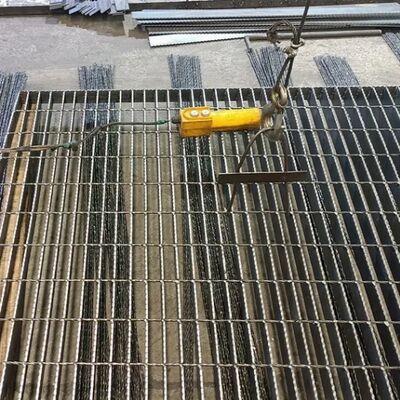

Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use 0
Material Specifications
  • Bearing Bars: Low Carbon Steel Smooth Flat Bars, Low Carbon Steel Serrated Bars, Low Carbon I-Shaped Steel Bars
  • Cross Bars: Steel Twisted Square Cross Bars, Steel Round Cross Bars
  • Stainless Steel Options: 304 Grade Flat Bars, 316 Grade Flat Bars
Technical Specifications
  • Bearing Bar Sizes: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5 to 75x10mm
  • Bearing Bar Pitch: 12.5, 15, 20, 25, 30, 35, 40, 45, 60mm
  • US Standard Sizes: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x1/4", 1-1/4"x1/4", 1-1/2"x1/4"
  • Cross Bar Pitch: 38, 50, 100
  • Surface Finishing: Black, electric galvanized, hot dipped galvanized, painted
Industry Standards
  • China: YB/T 4001.1-2007
  • USA: ANSI/NAAMM (MBG531-88)
  • UK: BS4592-1987
  • Australia: AS1657-1985
Product Series Specifications
Series Pitch of Bearing Bar Pitch of Cross Bar Specifications of Bearing Bar (Width x Thickness)
1 30 100 WA253/1, WA253/1, WA254/1, WA404/1, WA205/1, WA255/1
50 WB253/1, WB253/1, WB254/1, WB404/1, WB205/1, WB255/1
2 40 100 WA253/2, WA323/2, WA254/2, WA404/2, WA205/2, WA255/2
50 WB253/2, WB323/2, WB254/2, WB404/2, WB205/2, WB255/2
3 60 50 WB53/3, WB323/3, WB254/3, WB404/3, WB205/3, WB255/3
Series Pitch of Bearing Bar Pitch of Cross Bar Specifications of Bearing Bar (Width x Thickness)
1 30 100 WA325/1, WA405/1, WA455/1, WA505/1, WA555/1, WA605/1
50 WB325/1, WB405/1, WB455/1, WB505/1, WB555/1, WB605/1
2 40 100 WA325/2, WA405/2, WA455/2, WA505/2, WA555/2, WA605/2
50 WB325/2, WB405/2, WB455/2, WB505/2, WB555/2, WB605/2
3 60 50 WB325/3, WB405/3, WB455/3, WB505/3, WB555/3, WB605/3

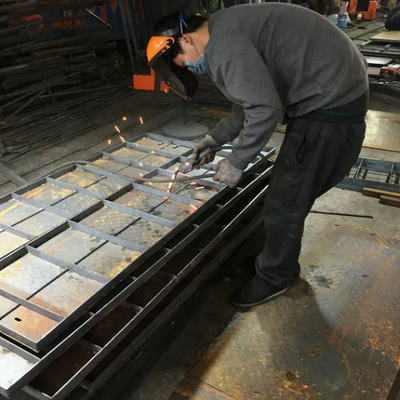

Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use 1

Label:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
