Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use

Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use
Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use

Gambar besar :  Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use

Detail produk:
Tempat asal: Henan
Nama merek: Gnee
Sertifikasi: SGS
Syarat-syarat pembayaran & pengiriman:
Kemasan rincian: Paket Standar Layak Laut
Menyediakan kemampuan: 10.000 Ton/Ton per Bulan
Kontak

Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use

Deskripsi

Galvanizing Serrated Steel Bar Fence Grating Steel Tread for Construction

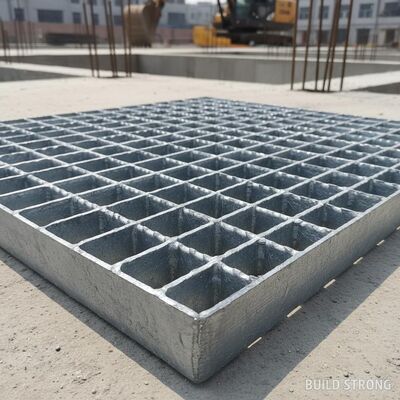

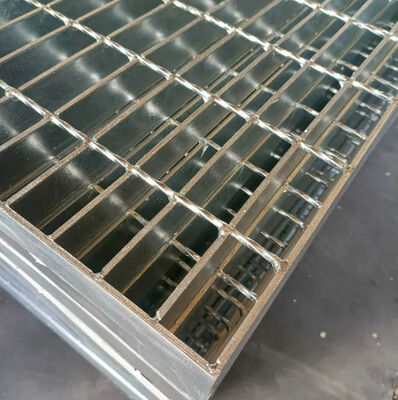

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use 0
Steel Grating Specifications
No. Item Description

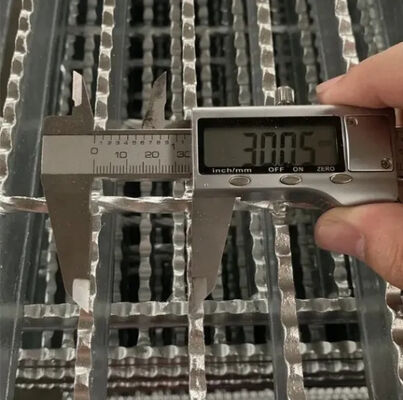

1 Bearing Bar 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc.
2 Bearing Bar Pitch 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement
3 Cross Bar 5 x 5, 6 x 6 (twisted bar or round bar)
4 Cross Bar Pitch 40mm, 50mm, 60mm, 100mm, or as customers' requirement
5 Flat Bar Type Plain, serrated (tooth-like), I bar (I-section), serrated I-shape bar
6 Surface Treatment Untreated, hot dip galvanized, powder coated, and electro polished, etc.
7 Steel Grating Standards China: YB/T4001.1-2007; US: ANSI/NAAMM(MBG531-88); UK: BS4592-1987
8 Steel Product Standard China: GB700-88; US: ASTM(A36); UK: 43A
9 Hot Galvanized Standard China: GB/T13912; US: ASTM(A123); UK: BS729
Main Features of Steel Tread
  • Grating can withstand repeated load impacts and has outstanding durability
  • Large opening area provides excellent drainage function and maintains hygiene
  • Easy to install and clean
  • Corrosion resistance after galvanizing makes it economical
  • Wide variety of types available for different applications
Galvanized Serrated Heavy Duty Steel Grating Bar Grating for Construction and Industrial Use 1

Label:

serrated bar grating,

serrated steel bar grating,

galvanized serrated grating
