Aluminum Perforated Metal Mesh Plate with Various Hole Shapes Can Be Customized

Gambar besar : Aluminum Perforated Metal Mesh Plate with Various Hole Shapes Can Be Customized

Detail produk:

Tempat asal:	CINA
Nama merek:	GNEE
Sertifikasi:	SGS

Syarat-syarat pembayaran & pengiriman:

Harga:	negotiable
Kemasan rincian:	Pengemasan layak laut, yaitu baki kayu atau baja dengan strip baja, dll
Waktu pengiriman:	5-9 hari kerja
Syarat-syarat pembayaran:	Bisa dinegosiasikan
Menyediakan kemampuan:	100 ton/minggu

Kontak

Aluminum Perforated Metal Mesh Plate with Various Hole Shapes Can Be Customized

Deskripsi

Menyoroti:

custom perforated aluminum mesh

aluminum mesh plate with holes

perforated metal sheet customizable

Aluminum Perforated Metal Mesh Plate with Various Hole Shapes Can Be Customized

Product Description

Applications: The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc.

Available Materials

Stainless Steel, Plain Steel, Galvanized Steel, Aluminum, Brass (Copper), Phosphor or Bronze

Features

Also named Punched Mesh
Can be supplied in folded or flat panels

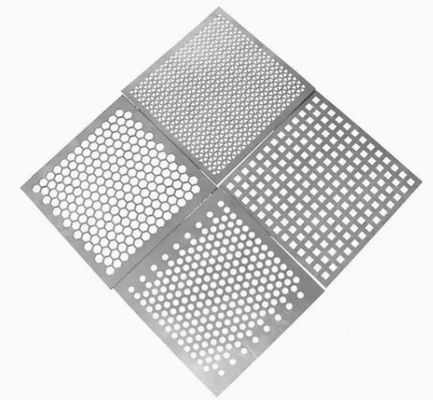

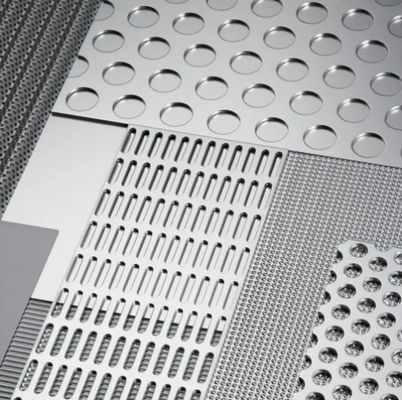

Punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.

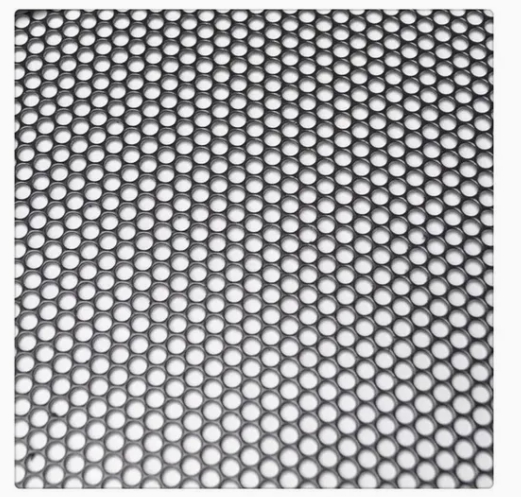

Round Holes Staggered Pattern Specifications

HOLE	CENTERS	GAUGE / PLATE THICK.	OPEN AREA
.020" RD	.045" Stag	26	18%
1/32" RD	1/16" Stag	22	23%
3/64" RD	5/64" Stag	24	33%
3/64" RD	3/32" Stag	22 thru 18	23%
1/16" RD	3/32"Stag	22 thru 16	40%
1/16" RD	7/64" Stag	20 thru 16	30%
1/16" RD	1/8" Stag	26 thru 16	23%
5/64" RD	1/8" Stag	22 thru 14	35%
3/32" RD	5/32" Stag	24 thru 14	33%
3/32" RD	3/16" Stag	24	23%
.117 RD	5/32" Stag	18	51%
1/8" RD	3/16" Stag	24 thru 11	40%
1/8" RD	7/32" Stag	14 thru 12	30%
1/8" RD	1/4" Stag	14, 13	23%
9/64" RD	3/16" Stag	18	51%
5/32" RD	3/16" Stag	22 thru 16	63%
5/32" RD	1/4" Stag	20 thru 10	35%
3/16" RD	7/32" Stag	22 thru 16	67%
3/16" RD	1/4" Stag	24 thru 12	51%
3/16" RD	5/16" Stag	10, 3/16"	33%
3/16" RD	3/8" Stag	14 thru 10	23%
1/4" RD	5/16" Stag	20 thru 16	58%
1/4" RD	3/8" Stag	26 thru 1/4"	40%
17/64" RD	5/16" Stag	20	66%
5/16"RD	7/16" Stag	20 thru 1/4"	46%
3/8" RD	9/16" Stag	20 thru 1/4"	40%
1/2" RD	11/16" Stag	20 thru 1/4"	48%
1/2" RD	3/4" Stag	16	40%
5/8" RD	7/8" Stag	10 thru 1/4"	46%
3/4" RD	1" Stag	16 thru 1/4"	51%
1" RD	1-3/8" Stag	10 thru 1/4"	48%
1-1/4" RD	1-5/8" Stag	1/4"	54%
1-1/2" RD	2" Stag	1/4"	51%
2" RD	2-1/2" Stag	1/4"	58%
2-1/2" RD	3" Stag	3/16"	63%
3" RD	3-1/2" Stag	3/16"	67%
4" RD	4-1/2" Stag	10	72%

GNEE STEEL offers perforated metal in different patterns, materials and thickness.
